Home / All / High Pressure Ball Valves / EHVC, EHVCSS Series | DK V86 Two-Way High-Pressure CNG/NGV Ball Valve (Steel, Stainless Steel)

EHVC, EHVCSS Series | DK V86 Two-Way High-Pressure CNG/NGV Ball Valve (Steel, Stainless Steel)

Categories	High Pressure Ball Valves
Interchange	DK V86 SERIES
Interchange	DK VC86 SERIES
Update Time	Sep 12,2025

Detail Information

EHVC, EHVCSS Series

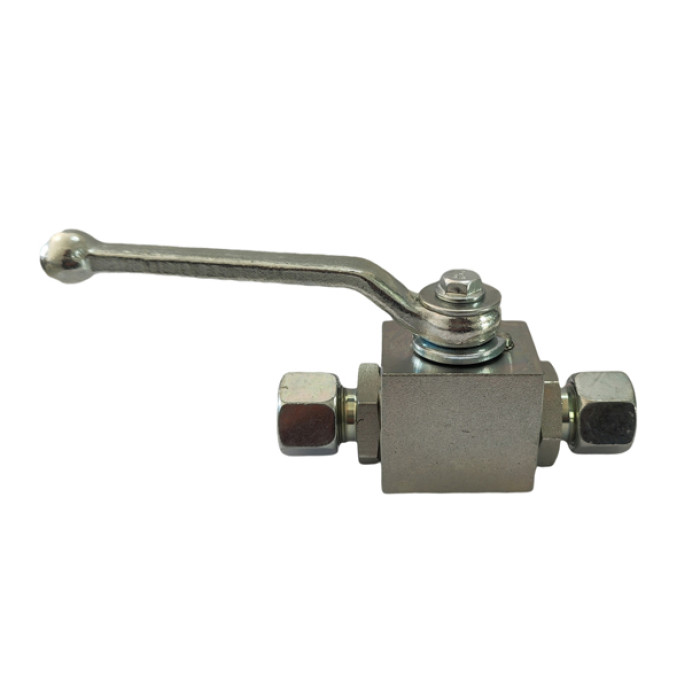

Two-Way High-Pressure CNG Ball Valve (Steel, Stainless Steel)

This EH series is interchangeable with DK V86 SERIES and DK VC86 SERIES. Two-way high-pressure CNG ball valve (steel, stainless 316). Mainly used in hydraulics, particularly in the construction industry and agricultural machinery, water engineering, mining engineering, and paint industries.

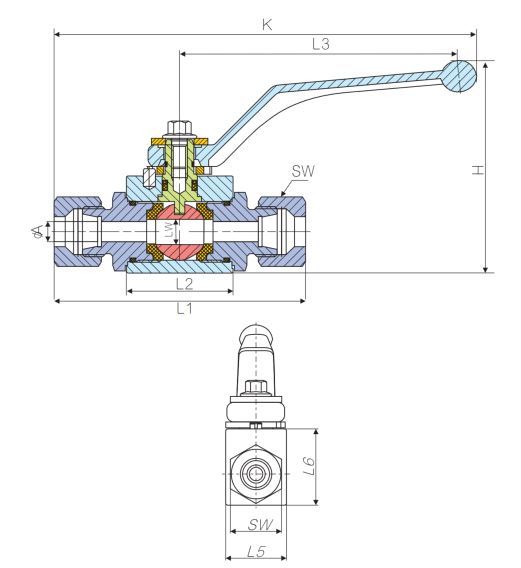

Body Size

Steel, Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Size	A(mm)	K(mm)	H(mm)	L1(mm)	L2(mm)	L3(mm)	L4(mm)	L5(mm)	SW(mm)
EHVC38-10	10S	10	167	84	98	43	117	33	38	24
EHVC38-12	12S	12	167	84	98	43	117	33	38	24
EHVC12-12	12S	12	177	89.5	119	48	117	36	40	36
EHVC20-14	20S	14	177	89.5	119	48	117	36	40	36
EHVC25-16	25S	16	256	115	141	62	185	49	57	46

AISI-SS316, Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Size	A(mm)	K(mm)	H(mm)	L1(mm)	L2(mm)	L3(mm)	L4(mm)	L5(mm)	SW(mm)
EHVCSS38-10	10S	10	167	84	98	43	117	33	38	24
EHVCSS38-12	12S	12	167	84	98	43	117	33	38	24
EHVCSS12-12	12S	12	177	89.5	119	48	117	36	40	36
EHVCSS20-14	20S	14	177	89.5	119	48	117	36	40	36
EHVCSS25-16	25S	16	256	115	141	62	185	49	57	46

Technical Specifications

Size	Max. Work Pressure (bar)
10S	413
12S	413
12S	413
20S	413
25S	413

Material:	Steel, Stainless
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	DK V86 SERIES, DK VC86 SERIES
	Ball Seals:	POM
	Connection:	Handle
	Disconnection:	Handle
	Connection Under Pressure:	No Allowed
