Home / All / High Pressure Ball Valves / EHVT Series | BK3 Three-Way High-Pressure Ball Valve - T Type (Steel)

EHVT Series | BK3 Three-Way High-Pressure Ball Valve - T Type (Steel)

Categories	High Pressure Ball Valves
Interchange	PISTER BK3 SERIES
Interchange	MHA BK3 SERIES
Interchange	HYDAC KHB3K SERIES
Interchange	GEMELS GE3 SERIES
Interchange	CIOCCA CRHI3 SERIES
Update Time	Sep 12,2025

Detail Information

EHVT Series

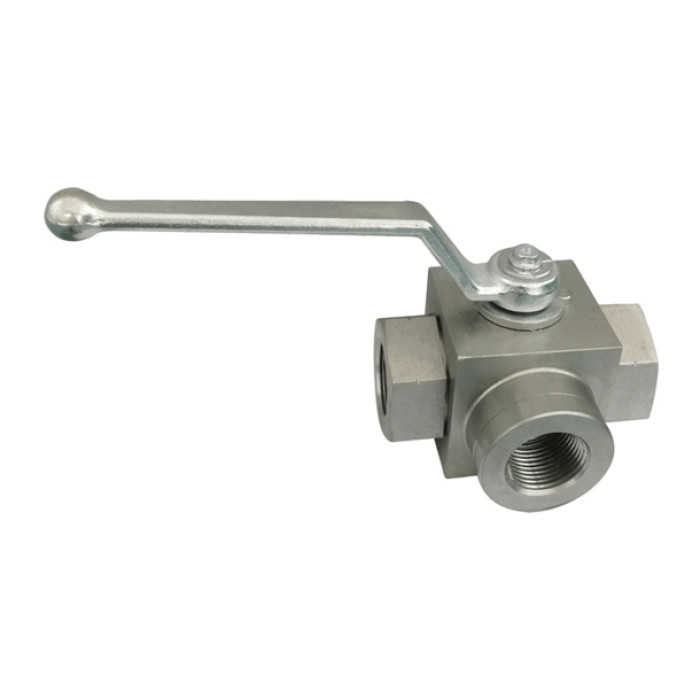

Three-Way T Type High-Pressure Ball Valve (Steel)

This EH series is interchangeable with PISTER BK3 SERIES, MHA BK3 SERIES, HYDAC KHB3K SERIES, GEMELS GE3 SERIES, and CIOCCA CRHI3 SERIES. Steel Product. Three-way high-pressure ball valve (steel)-T Type, used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.

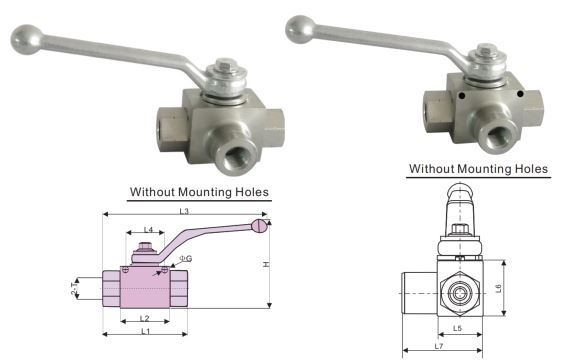

Body Size

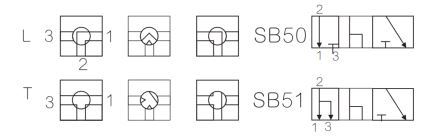

Three-Way T Type High-Pressure Ball Valve

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (Inch)	LW(mm)	L1(mm)	L2(mm)	L3(mm)	H(mm)	L4xG(mm)	L5(mm)	L6(mm)	L7(mm)	T
EHVT18	1/8''	4	69	40	154.1	73	26X4.5	29	33	47.5	1/8'' BSPP(NPT)
EHVT14	1/4''	6	69	40	145	71	26X4.5	29	33	47.5	1/4'' BSPP(NPT)
EHVT38	3/8''	10	71	42	145	76.5	32X6.5	35	38	52	3/8'' BSPP(NPT)
EHVT12	1/2''	13	82	48	160.9	81	37.5X6.5	38	40	59	1/2'' BSPP(NPT)
EHVT34	3/4''	20	96	62	218	112	45X6.5	52	57	72	3/4'' BSPP(NPT)
EHVT10	1''	25	113	66	226.5	120	55X6.5	61	65	85	1'' BSPP(NPT)
EHVT10-114	1''	25	120	66	229.8	120	55X6.5	61	65	85	1-1/4'' BSPP(NPT)
EHVT10-112	1''	25	130	66	235	120	55X6.5	61	65	84.5	1-1/2'' BSPP(NPT)
EHVT114	1-1/4''	32	120	80	295	170	/	75	87	101	1-1/4'' BSPP(NPT)
EHVT112	1-1/2''	38	130	85	300	174.5	/	85	99	118	1-1/2'' BSPP(NPT)
EHVT20	2''	48	140	100	305	197	/	105	115	128	2'' BSPP(NPT)

Thread Size

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHVT14-G1/4	G1/4	/	69	13.5	22
EHVT38-G3/8	G3/8	/	71	14	27
EHVT12-G1/2	G1/2	/	82	16.5	30
EHVT34-G3/4	G3/4	/	95	18	41
EHVT10-G1	G1	/	113	20	50
EHVT10-G114	G1-1/4	/	120	22	50
EHVT10-G112	G1-1/2	/	129	25	60
EHVT114-G114	G1-1/4	/	120	29	60
EHVT112-G112	G1-1/2	/	130	28	70
EHVT20-G2	G2	/	140	29	85

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHVT14-1/4NPT	1/4NPT	/	69	15	22
EHVT38-3/8NPT	3/8NPT	/	71	15.5	27
EHVT12-1/2NPT	1/2NPT	/	82	17	30
EHVT34-3/4NPT	3/4NPT	/	95	20.5	41
EHVT10-1NPT	1NPT	/	113	25	50
EHVT10-114NPT	1-1/4NPT	/	120	22	50
EHVT10-112NPT	1-1/2NPT	/	129	22	60
EHVT114-114NPT	1-1/4NPT	/	120	29	60
EHVT112-112NPT	1-1/2NPT	/	130	30	70
EHVT20-2NPT	2NPT	/	140	30	85

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHVT-10S	M18X1.5	10	73	12	22
EHVT-12S	M20X1.5	12	77	12	27
EHVT-16S	M24X1.5	16	87	14	30
EHVT-20S	M30X2	20	91	16	32
EHVT-25S	M36X2	25	111	18	41
EHVT-30S	M42X2	30	120	20	50
EHVT-38S	M52X2	38	147	22	60

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHVT-8L	M14X1.5	8	69	10	22
EHVT-10L	M16X1.5	10	77	11	27
EHVT-12L	M18X1.5	12	77	11	27
EHVT-15L	M22X1.5	15	83	12	30
EHVT-22L	M30X2	22	103	14	41
EHVT-28L	M36X2	28	107.5	14	55
EHVT-35L	M45X2	35	135	16	60
EHVT-42L	M52X2	42	142	16	70

Art. No.	D	RA(mm)	L(mm)	i(mm)	SW1(mm)
EHVT-SAE4	7/16-20UNF	/	69	14	22
EHVT-SAE6	9/16-18UNF	/	71	15.5	27
EHVT-SAE8	3/4-16UNF	/	82	18	30
EHVT-SAE12	1-1/16-12UN	/	101	23.5	41
EHVT-SAE16	1-5/16-12UN	/	113	23	50
EHVT-SAE20	1-5/8-12UN	/	120	25	60
EHVT-SAE24	1-7/8-12UN	/	130	25	70
EHVT-SAE32	2-1/2-12UN	/	140	25	80

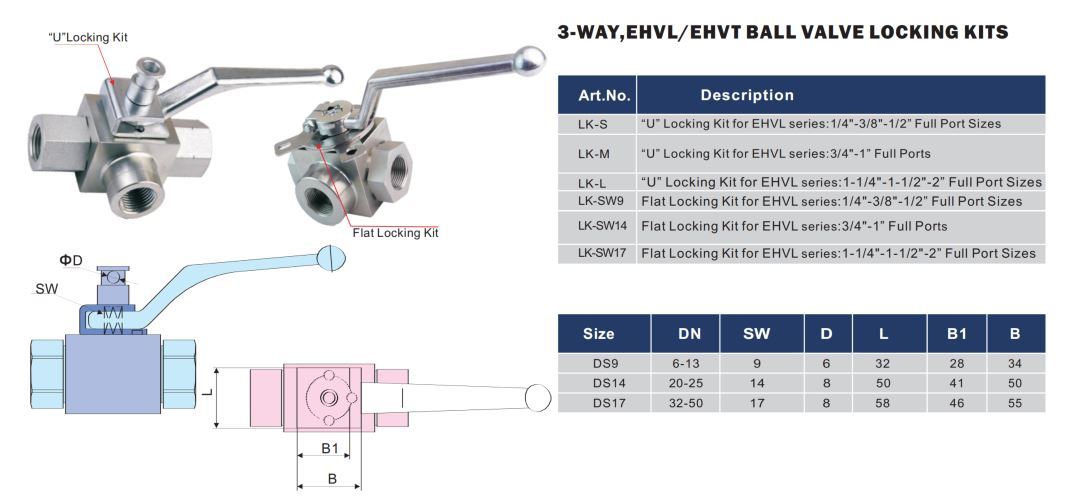

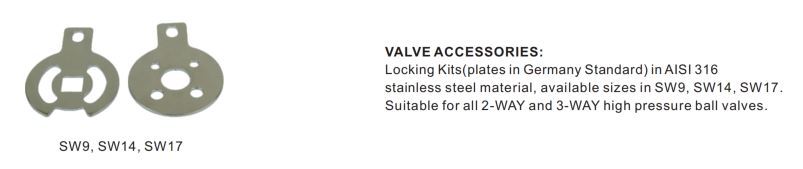

Accessories

Technical Specifications

Body Dash Size	Body Size (Inch)	Max. Work Pressure (bar)
02	1/8''	500
04	1/4''	500
06	3/8''	500
08	1/2''	500
12	3/4''	315
16	1''	315
16	1''	315
16	1''	315
20	1-1/4''	315
24	1-1/2''	315
32	2''	315

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	PISTER BK3 SERIES, MHA BK3 SERIES, HYDAC KHB3K SERIES, CIOCCA CRHI3 SERIES, GEMELS GE3 SERIES
	Ball Seals:	POM
	Connection:	Handle
	Disconnection:	Handle
	Connection Under Pressure:	No Allowed
