EHVTSS Series | BK3 Three-Way High-Pressure Ball Valve - T Type (Stainless Steel)
| Categories | High Pressure Ball Valves |
|---|---|
| Interchange | PISTER BK3 SERIES |
| Interchange | MHA BK3 SERIES |
| Interchange | HYDAC KHB3K SERIES |
| Interchange | GEMELS GE3 SERIES |
| Interchange | CIOCCA CRHI3 SERIES |
| Update Time | Sep 12,2025 |
Detail Information

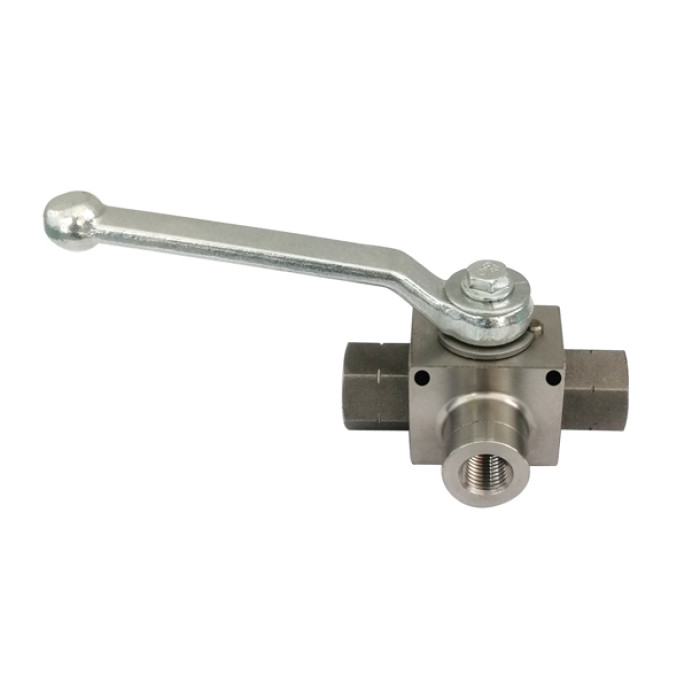

EHVTSS Series
Three-Way T Type High Pressure Ball Valve
(Stainless Steel)
This EH series is interchangeable with PISTER BK3 SERIES, MHA BK3 SERIES, HYDAC KHB3K SERIES, GEMELS GE3 SERIES, and CIOCCA CRHI3 SERIES. Stainless Steel Product. Three-way high-pressure ball valve (Stainless Steel 316)-T Type, used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.

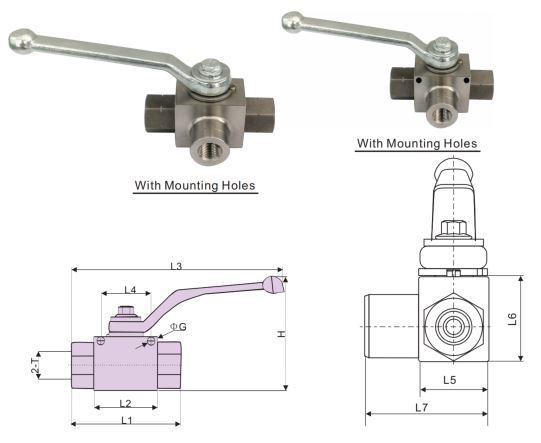

Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | LW(mm) | L1(mm) | L2(mm) | L3(mm) | H(mm) | L4xG(mm) | L5(mm) | L6(mm) | L7(mm) | T |
EHVTSS14 | 1/4'' | 6 | 69 | 40 | 145 | 71 | 26X4.5 | 29 | 33 | 47.5 | 1/4'' BSPP(NPT) |
EHVTSS38 | 3/8'' | 10 | 71 | 42 | 145 | 76.5 | 32X6.5 | 35 | 38 | 52 | 3/8'' BSPP(NPT) |
EHVTSS12 | 1/2'' | 13 | 82 | 48 | 160.9 | 81 | 37.5X6.5 | 38 | 40 | 59 | 1/2'' BSPP(NPT) |
EHVTSS34 | 3/4'' | 20 | 96 | 62 | 218 | 112 | 45X6.5 | 52 | 57 | 72 | 3/4'' BSPP(NPT) |
EHVTSS10 | 1'' | 25 | 113 | 66 | 226.5 | 120 | 55X6.5 | 61 | 65 | 85 | 1'' BSPP(NPT) |
Thread Size
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVTSS14-G1/4 | G1/4 | / | 69 | 13.5 | 22 |
EHVTSS38-G3/8 | G3/8 | / | 71 | 14 | 27 |
EHVTSS12-G1/2 | G1/2 | / | 82 | 16.5 | 30 |
EHVTSS34-G3/4 | G3/4 | / | 95 | 18 | 41 |
EHVTSS10-G1 | G1 | / | 113 | 20 | 50 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVTSS14-1/4NPT | 1/4NPT | / | 69 | 15 | 22 |
EHVTSS38-3/8NPT | 3/8NPT | / | 71 | 15.5 | 27 |
EHVTSS12-1/2NPT | 1/2NPT | / | 82 | 17 | 30 |
EHVTSS34-3/4NPT | 3/4NPT | / | 96 | 20.5 | 41 |
EHVTSS10-1NPT | 1NPT | / | 113 | 25 | 50 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVTSS-10S | M18X1.5 | 10 | 73 | 12 | 22 |
| EHVTSS-12S | M20X1.5 | 12 | 77 | 12 | 27 |
EHVTSS-16S | M24X1.5 | 16 | 87 | 14 | 30 |
EHVTSS-20S | M30X2 | 20 | 91 | 16 | 32 |
EHVTSS-25S | M36X2 | 25 | 111 | 18 | 41 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVTSS-8L | M14X1.5 | 8 | 69 | 10 | 22 |
| EHVTSS-10L | M16X1.5 | 10 | 77 | 11 | 27 |
EHVTSS-12L | M18X1.5 | 12 | 77 | 11 | 27 |
EHVTSS-15L | M22X1.5 | 15 | 83 | 12 | 30 |
EHVTSS-22L | M30X2 | 22 | 103 | 14 | 41 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVTSS-SAE4 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHVTSS-SAE6 | 9/16-18UNF | / | 71 | 15.5 | 27 |
EHVTSS-SAE8 | 3/4-16UNF | / | 82 | 18 | 30 |
EHVTSS-SAE12 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
EHVTSS-SAE16 | 1-5/16-12UN | / | 113 | 23 | 50 |
